Units
metric
Specifications
Load capacity
1480 - 1890 kg
1480 - 1890 kg

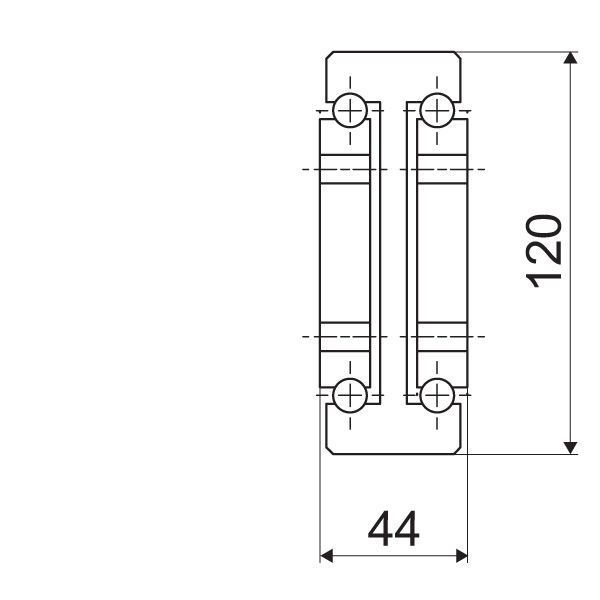

Height
120 mm
120 mm
44 mm
Fixation (cabinet side)
Metal: M10
Wood: -
Fixation (drawer side)
Metal: M10
Wood: -
Technical information
Article number
Load capacity
Downloads
138120S03
300 mm
300 mm
1480 kg
138120S04
350 mm
350 mm
1560 kg
138120S05
400 mm
400 mm
1640 kg
138120S06
450 mm
450 mm
1720 kg
138120S07
500 mm
500 mm
1760 kg
138120S08
550 mm
550 mm
1820 kg
138120S09
600 mm
600 mm
1850 kg
138120S10
650 mm
650 mm
1870 kg
138120S11
700 mm
700 mm
1890 kg
138120S12
750 mm
750 mm
1860 kg
138120S13
800 mm
800 mm
1840 kg
138120S14
850 mm
850 mm
1820 kg
138120S15
900 mm
900 mm
1790 kg
138120S16
950 mm
950 mm
1760 kg
138120S17
1000 mm
1000 mm
1730 kg
138120S18
1050 mm
1050 mm
1700 kg
138120S19
1100 mm
1100 mm
1660 kg
138120S20
1150 mm
1150 mm
1630 kg
138120S21
1200 mm
1200 mm
1600 kg
More than a product
fixations
Threaded holes
