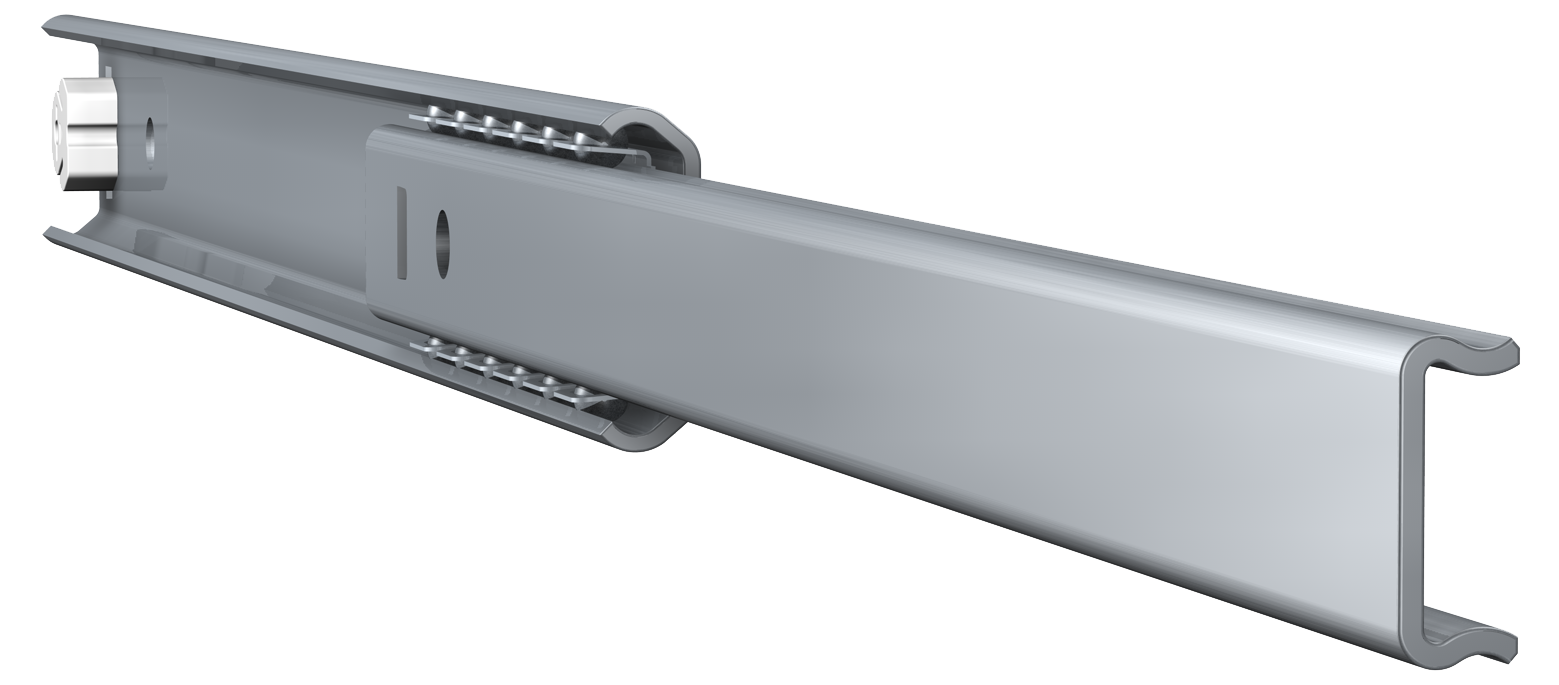

Specifications
Load capacity
46 - 78 kg
13.5 mm
46 - 78 kg

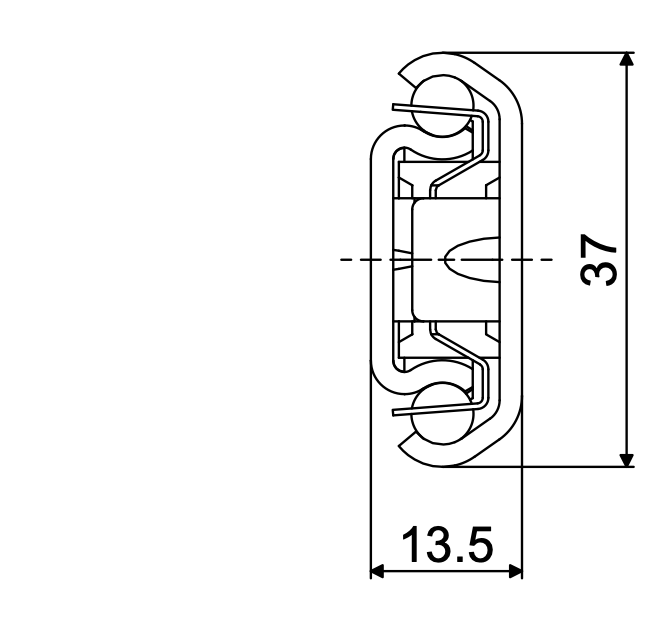

Height
37 mm
37 mm
13.5 mm
Fixation (cabinet side)
Metal
M4 / DIN 7984
M4 / M5 / ISO 7380
Wood
5.0 / DIN 7997
Fixation (drawer side)
Metal
M4 / DIN 965 / ISO 7046
M4 / DIN 7500
Wood
4.5 / DIN 7997
Downloads
16551494 02
16551494 02
Technical information
Article number
Load capacity
Downloads
107230F
300 mm
205 mm
78 kg
STEP filesDrawing (Metric)Drawing (Imperial)
107231F
350 mm
239 mm
63 kg
107232F
400 mm
289 mm
54 kg
107233F
450 mm
339 mm
46 kg
107234F
500 mm
373 mm
54 kg
107236F
600 mm
457 mm
56 kg
107238F
700 mm
541 mm
56 kg
