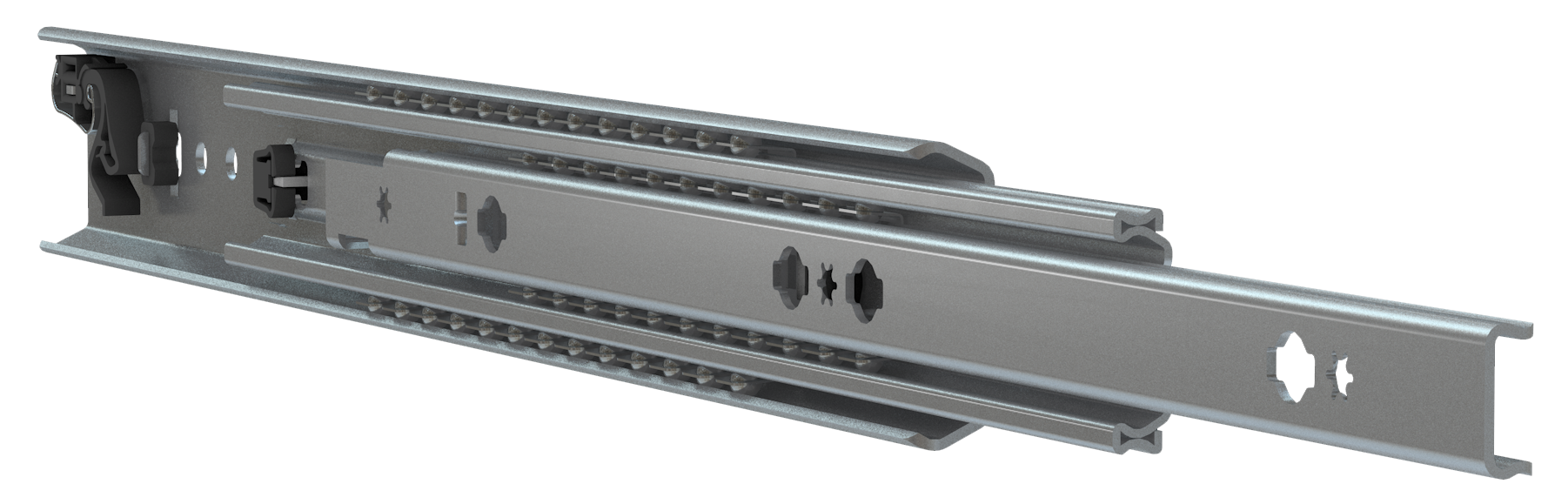

Full extension 3-beam telescopic ball bearing slide with pull in fail safe and travel up to 100%. Supports loads up to 129 kg/283.8 lbs. and is part of our heavy duty slide range. Surface treatment: zinQproteQ for increased corrosion protection.
Specifications
Load capacity
94 - 129 kg
94 - 129 kg

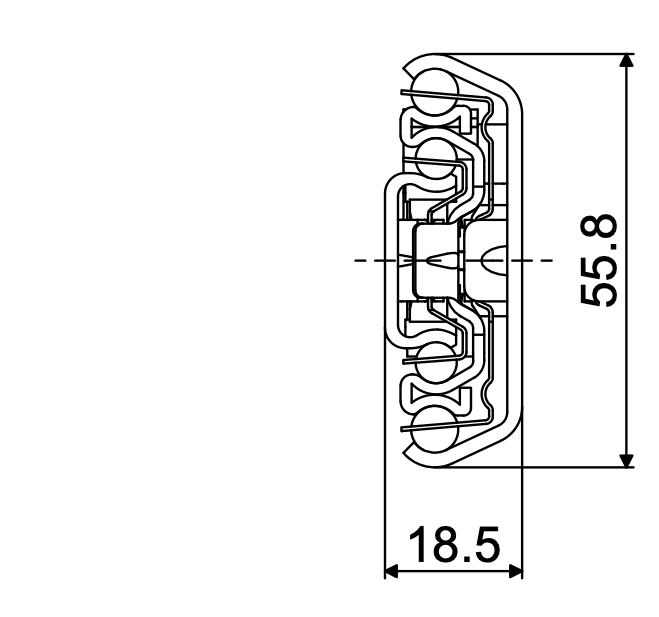

Height
55.8 mm
55.8 mm
18.5 mm
Fixation (cabinet side)
Metal: M5 / DIN 965 / ISO 7046, M5 / DIN 7500, M5 / DIN 7991 / ISO 10462
Wood: 5.0 / DIN 7997
Fixation (drawer side)
Metal: M4 / DIN 965 / ISO 7046, M4 / DIN 7500, M4 / DIN 7991 / ISO 10462
Wood: 4.0 / 4.5 / DIN 7997
Technical information
Article number
Load capacity
Downloads
M12AB3
300 mm
285 mm
94 kg
M12AB4
350 mm
350 mm
96 kg
M12AB3
400 mm
400 mm
97 kg
M12AB3
450 mm
450 mm
110 kg
M12AB3
500 mm
500 mm
119 kg
M12AB3
550 mm
550 mm
118 kg
M12AB3
600 mm
600 mm
123 kg
M12AB3
700 mm
700 mm
129 kg
M12AB3
800 mm
800 mm
121 kg
More than a product
features
Pull in with fail-safe
fixations
Countersunk holes
fixations
Click bracket
The Click bracket is designed for quick and secure attachment without the need for tools. Instead of clicking into place, the bracket is rotated into position, ensuring a tight and stable fit. This intuitive turn-and-lock mechanism allows for easy installation, reliable fastening, and simple removal when needed
