Specifications
Load capacity
26 - 36 kg
26 - 36 kg

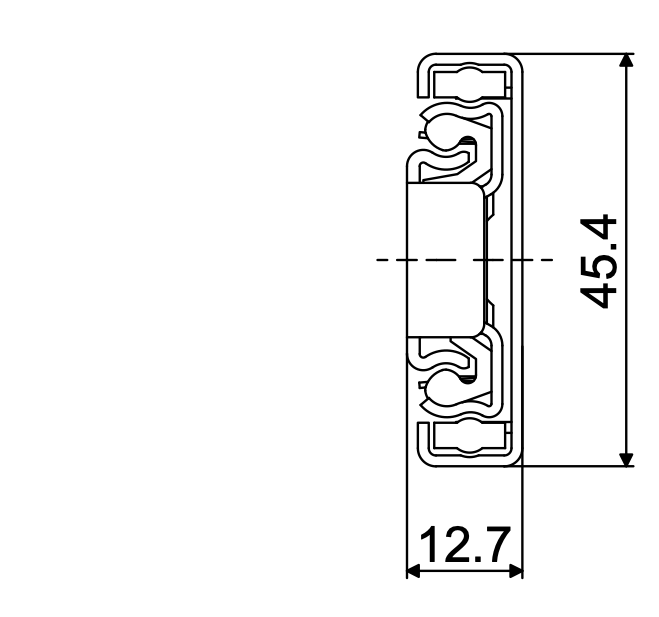

Height
45.4 mm
45.4 mm
12.7 mm
Fixation (cabinet side)
Metal: M4 / DIN 7984, M3 / DIN 7985 / ISO 7045, M4 / ISO 7380
Wood: 3.5 / DIN 7981 / ISO 7049
Fixation (drawer side)
Metal: M3 / DIN 7984, M3 / DIN 7985 / ISO 7045, M4 / ISO 7380
Wood: 2.9 / DIN 7981 / ISO 7049
Technical information
Article number
Load capacity
Downloads
13645S62
350 mm
320 mm
26 kg
13645S63
400 mm
375 mm
31 kg
13645S64
450 mm
450 mm
36 kg
13645S65
500 mm
500 mm
36 kg
13645S66
550 mm
550 mm
31 kg
13645S67
600 mm
600 mm
31 kg
13645S68
650 mm
650 mm
26 kg
More than a product
features

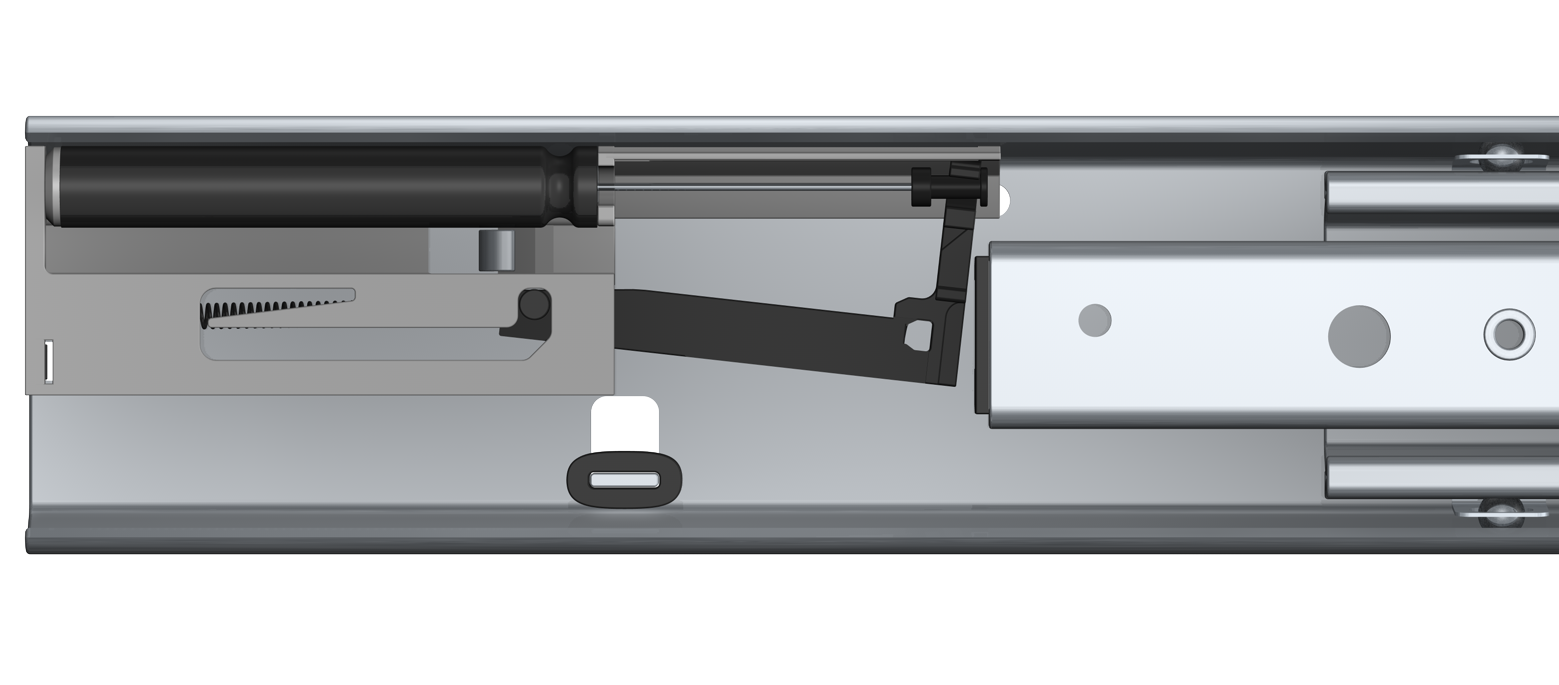

Soft close damper
features

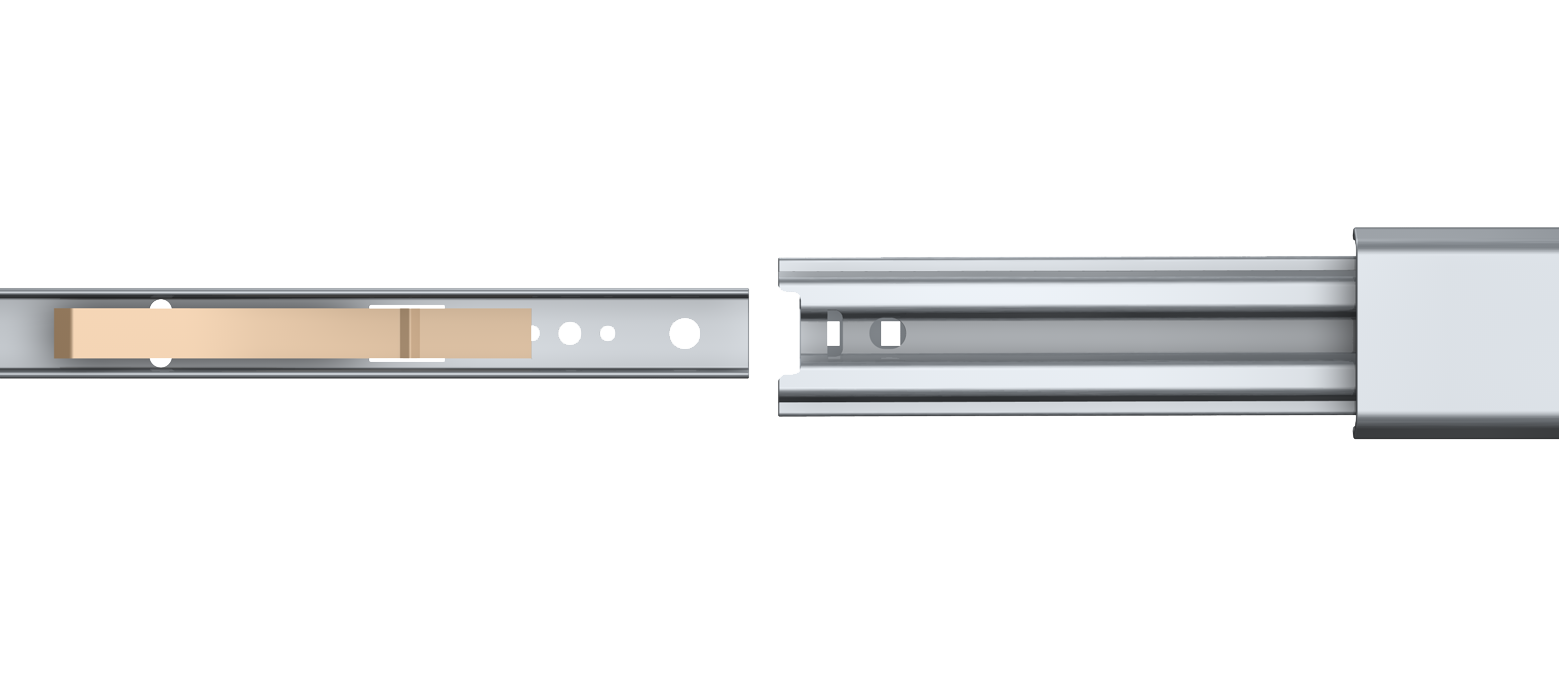

Disconnect
fixations
Holes
