TR-1529 FLEXFIT

Units
metric

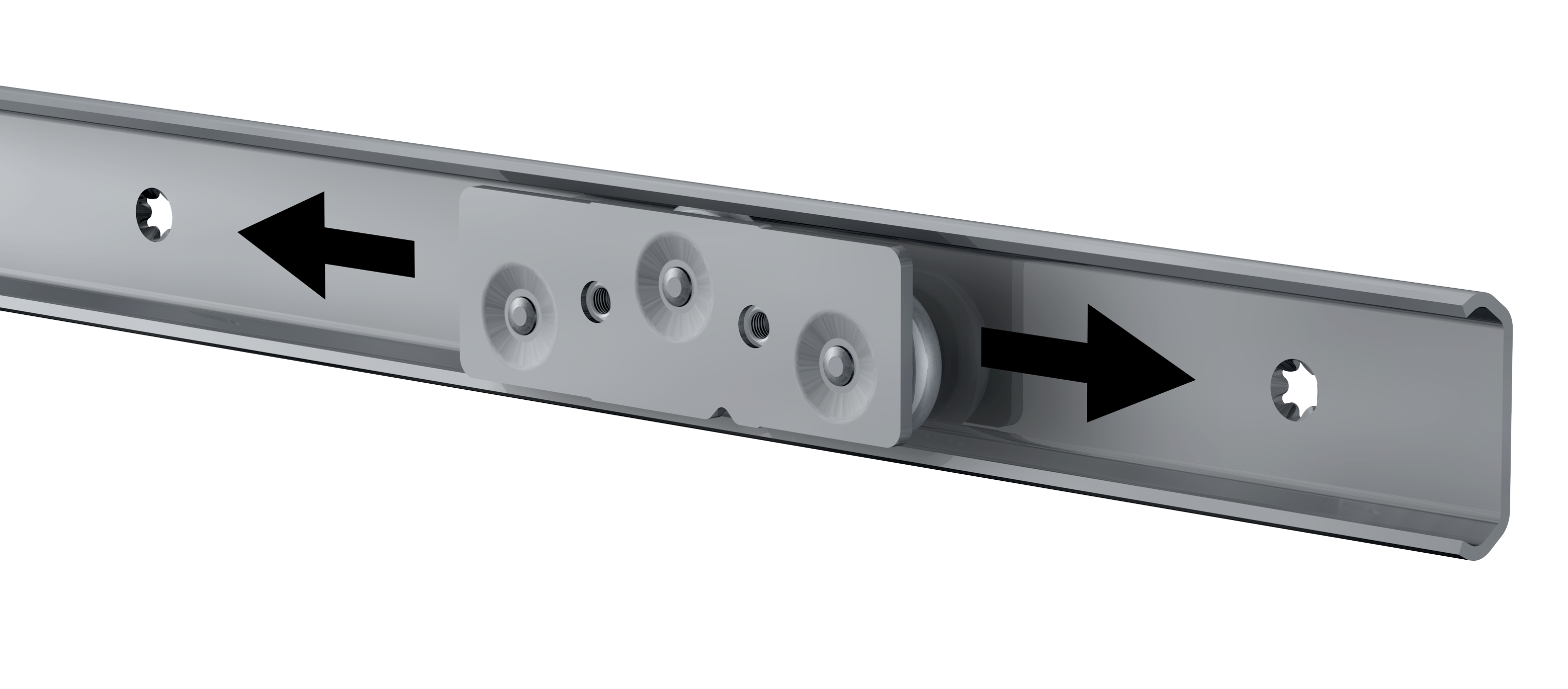

Linear guiding system that makes it possible to move an application horizontally, vertically or diaginal. The linear guide consists of a 3 or 5 wheel carrier and a Finn profile. Typical applications for the FlexFit are vending machines and sliding doors. Also available as TR-1537.

Specifications

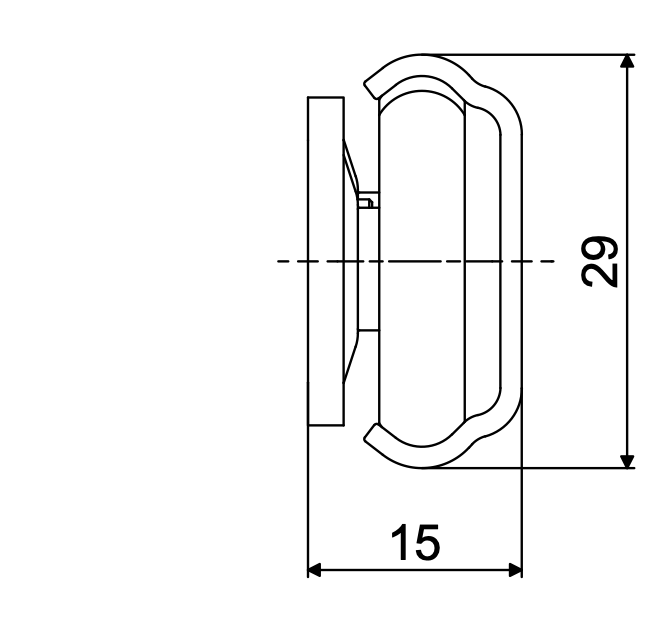

Telescopic slide - Cross section - FLEXFIT - 1529
Load capacity
customer specific
Height
29 mm
Width
15 mm

Technical information

More than a product

Our approach complements our products. Partner with us, and you'll find a reliable teamplayer who works alongside you, thinking with you every step of the way!

Co-creation
Quality
Sustainability
Factory of the Future

features

Rubber stop

Rubber stop developed for linear guide FlexFit 1529 and FlexFit 1537. Packed per pair.

Rubber stop
