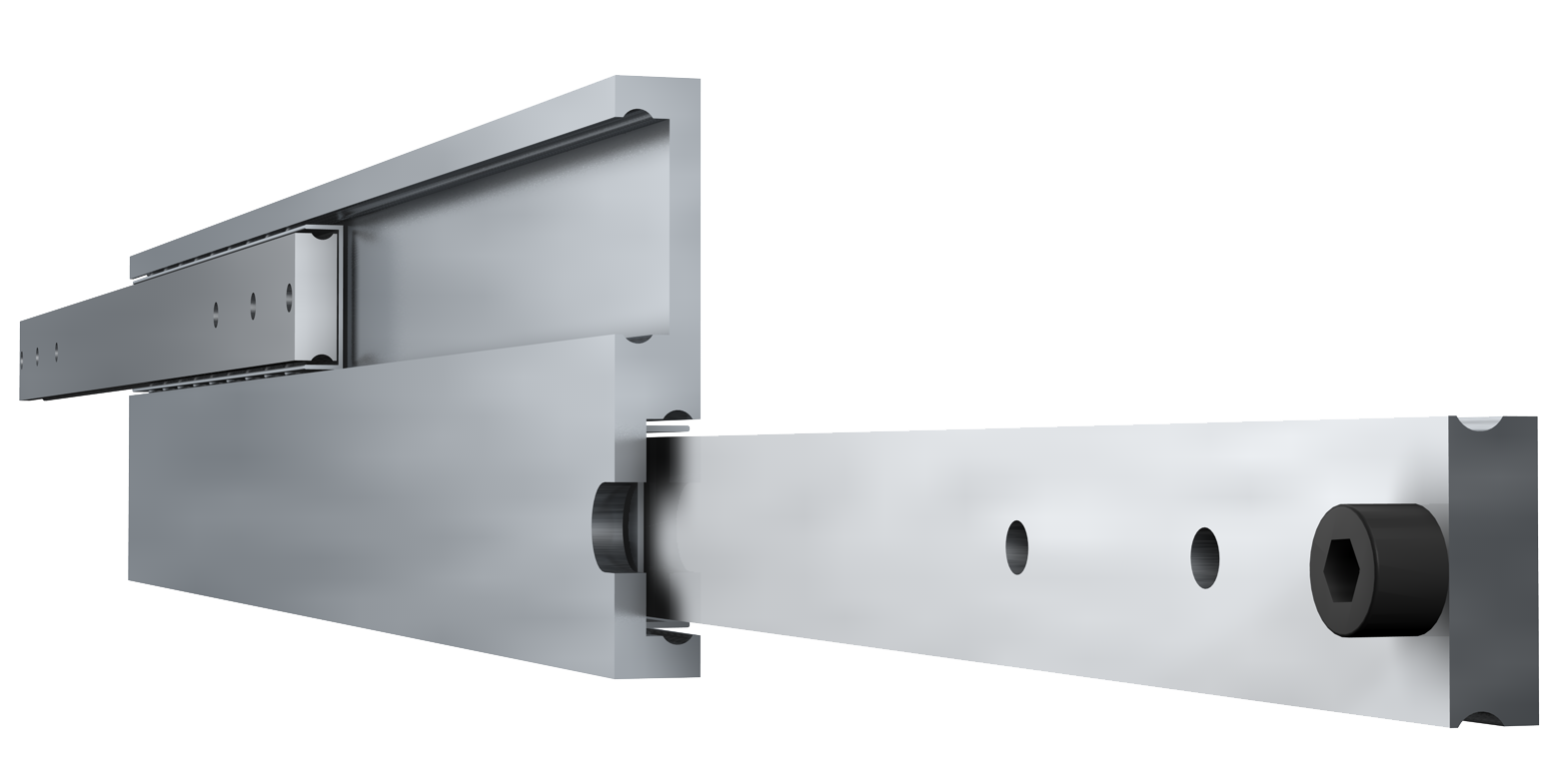

This extra heavy duty telescopic S-design slide in steel is made for heavy duty applications with little mounting space. This slim fitted ball bearing slide supports loads up to 435 kg/959 lbs.
Specifications
Load capacity
230 - 435 kg
230 - 435 kg
Height
100 mm
100 mm
Width
20 mm
20 mm
Fixation (cabinet side)
Metal: M8
Fixation (drawer side)
Metal: M8
Technical information
Article number
Length
Travel
Load capacity
Downloads
138100S30
200 mm
200 mm
250 kg
138100S31
250 mm
250 mm
280 kg
138100S32
300 mm
300 mm
320 kg
138100S33
350 mm
350 mm
360 kg
138100S34
400 mm
400 mm
390 kg
138100S35
450 mm
450 mm
410 kg
138100S36
500 mm
500 mm
425 kg
138100S37
550 mm
550 mm
435 kg
138100S38
600 mm
600 mm
420 kg
138100S39
650 mm
650 mm
410 kg
138100S40
700 mm
700 mm
400 kg
138100S41
750 mm
750 mm
380 kg
138100S42
800 mm
800 mm
360 kg
138100S43
850 mm
850 mm
340 kg
138100S44
900 mm
900 mm
320 kg
138100S45
950 mm
950 mm
300 kg
138100S46
1000 mm
1000 mm
285 kg
138100S47
1050 mm
1050 mm
270 kg
138100S48
1100 mm
1100 mm
255 kg
138100S49
1150 mm
1150 mm
240 kg
138100S50
1200 mm
1200 mm
230 kg
More than a product
Our approach complements our products. Partner with us, and you'll find a reliable teamplayer who works alongside you, thinking with you every step of the way!
fixations
Threaded holes
Threaded holes provide an integrated fastening solution, allowing the telescopic slide to be securely mounted using screws. This ensures precise alignment and a firm attachment to the surrounding construction or mounting surface.
