Units
metric

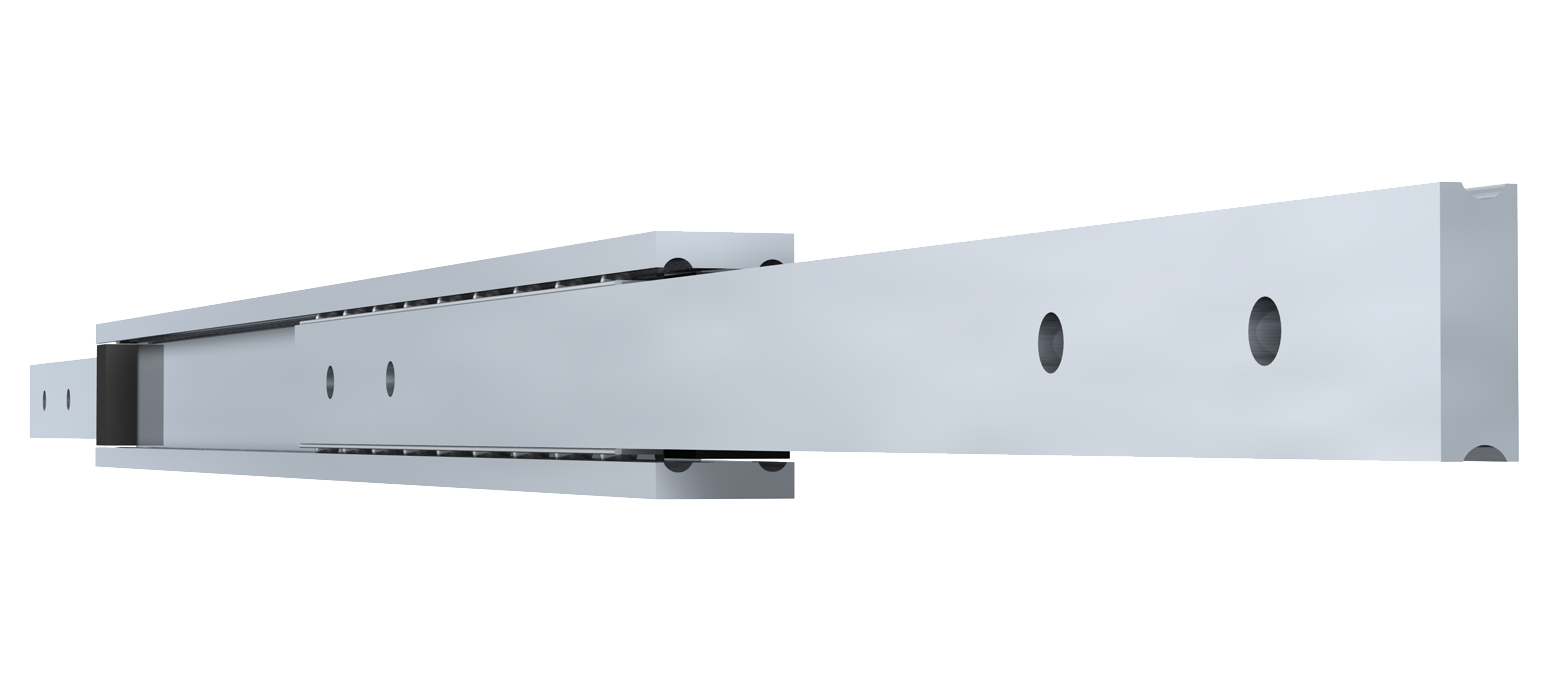

Double T-design two-way extension slide in aluminum which is made for heavy duty applications which is ready to tackle any heavy duty task while enduring harsh, outdoor or wet environment. Load capacity up to 125 kg/275.6 lbs.
Specifications
Load capacity
65 - 125 kg
65 - 125 kg

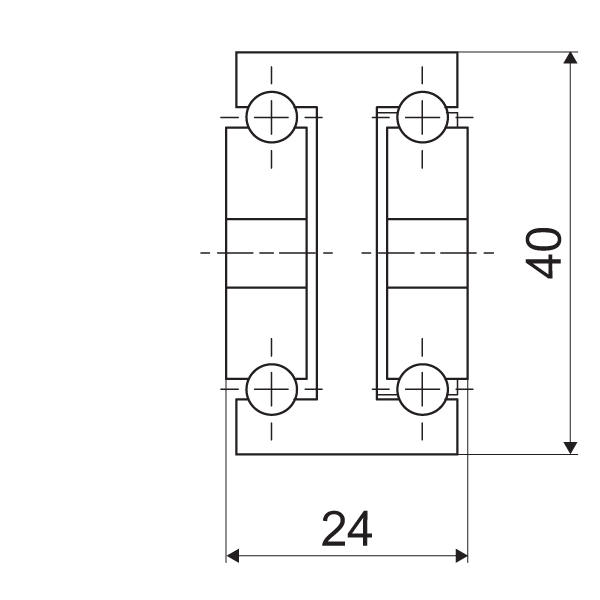

Height
40 mm
40 mm
Width
24 mm
24 mm
Fixation (cabinet side)
Metal: M8
Fixation (drawer side)
Metal: M8
Technical information
Article number
Length
Travel
Load capacity
Downloads
13840S017B
200 mm
200 mm
85 kg
13840S027B
250 mm
250 mm
90 kg
13840S037B
300 mm
300 mm
95 kg
13840S047B
350 mm
350 mm
100 kg
13840S057B
400 mm
400 mm
105 kg
13840S067B
450 mm
450 mm
110 kg
13840S077B
500 mm
500 mm
115 kg
13840S087B
550 mm
550 mm
120 kg
13840S097B
600 mm
600 mm
125 kg
13840S107B
650 mm
650 mm
120 kg
13840S117B
700 mm
700 mm
115 kg
13840S127B
750 mm
750 mm
110 kg
13840S137B
800 mm
800 mm
105 kg
13840S147B
850 mm
850 mm
100 kg
13840S157B
900 mm
900 mm
95 kg
13840S167B
950 mm
950 mm
90 kg
13840S177B
1000 mm
1000 mm
85 kg
13840S187B
1050 mm
1050 mm
80 kg
13840S197B
1100 mm
1100 mm
75 kg
13840S207B
1150 mm
1150 mm
70 kg
13840S217B
1200 mm
1200 mm
65 kg
More than a product
Our approach complements our products. Partner with us, and you'll find a reliable teamplayer who works alongside you, thinking with you every step of the way!
fixations
Threaded holes
Threaded holes provide an integrated fastening solution, allowing the telescopic slide to be securely mounted using screws. This ensures precise alignment and a firm attachment to the surrounding construction or mounting surface.
