Double T-design, extra heavy-duty telescopic drawer with a load capacity up to 420 kg/925.9 lbs. This solid beam slide is manufactured from cold drawn steel is designed for industrial purposes.
Specifications
Load capacity
290 - 420 kg
290 - 420 kg

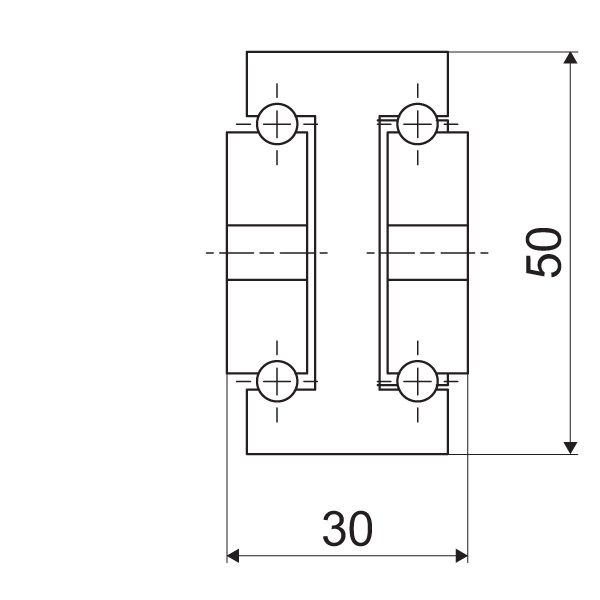

Height
50 mm
50 mm
Width
30 mm
30 mm
Fixation (cabinet side)
Metal: M8
Fixation (drawer side)
Metal: M8
Technical information
Article number
Length
Travel
Load capacity
Downloads
13850S01
200 mm
200 mm
340 kg
13850S02
250 mm
250 mm
350 kg
13850S03
300 mm
300 mm
360 kg
13850S04
350 mm
350 mm
370 kg
13850S05
400 mm
400 mm
380 kg
13850S06
450 mm
450 mm
390 kg
13850S07
500 mm
500 mm
400 kg
13850S08
550 mm
550 mm
410 kg
13850S09
600 mm
600 mm
420 kg
13850S10
650 mm
650 mm
410 kg
13850S11
700 mm
700 mm
400 kg
13850S12
750 mm
750 mm
390 kg
13850S13
800 mm
800 mm
380 kg
13850S14
850 mm
850 mm
370 kg
13850S15
900 mm
900 mm
360 kg
13850S16
950 mm
950 mm
350 kg
13850S17
1000 mm
1000 mm
340 kg
13850S18
1050 mm
1050 mm
330 kg
13850S19
1100 mm
1100 mm
320 kg
13850S20
1150 mm
1150 mm
310 kg
13850S21
1200 mm
1200 mm
290 kg
More than a product
Our approach complements our products. Partner with us, and you'll find a reliable teamplayer who works alongside you, thinking with you every step of the way!
fixations
Threaded holes
Threaded holes provide an integrated fastening solution, allowing the telescopic slide to be securely mounted using screws. This ensures precise alignment and a firm attachment to the surrounding construction or mounting surface.
