Units
metric

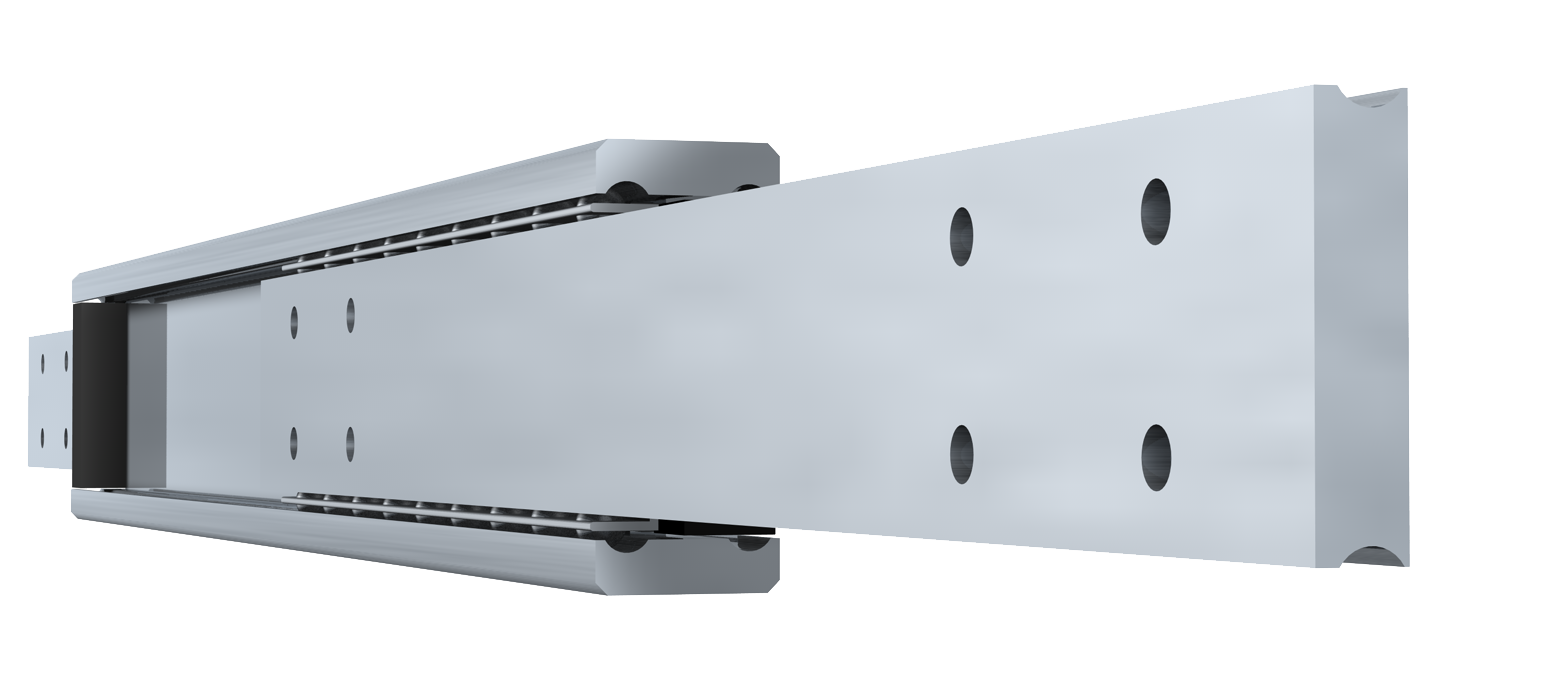

Drawer runner which can travel in two directions which makes it perfect for warehousing applications. This extra heavy duty industrial double T-design slide in aluminum supports loads up to 330 kg/727.5 lbs.
Specifications
Load capacity
210 - 330 kg
210 - 330 kg
Height
70 mm
70 mm
Width
32 mm
32 mm
Fixation (cabinet side)
Metal: M8
Fixation (drawer side)
Metal: M8
Technical information
Article number
Length
Travel
Load capacity
Downloads
13870S017B
200 mm
200 mm
240 kg
13870S027B
250 mm
250 mm
250 kg
13870S037B
300 mm
300 mm
260 kg
13870S047B
350 mm
350 mm
270 kg
13870S057B
400 mm
400 mm
280 kg
13870S067B
450 mm
450 mm
290 kg
13870S077B
500 mm
500 mm
300 kg
13870S087B
550 mm
550 mm
315 kg
13870S097B
600 mm
600 mm
330 kg
13870S107B
650 mm
650 mm
320 kg
13870S117B
700 mm
700 mm
310 kg
13870S127B
750 mm
750 mm
300 kg
13870S137B
800 mm
800 mm
290 kg
13870S147B
850 mm
850 mm
280 kg
13870S157B
900 mm
900 mm
270 kg
13870S167B
950 mm
950 mm
260 kg
13870S177B
1000 mm
1000 mm
250 kg
13870S187B
1050 mm
1050 mm
240 kg
13870S197B
1100 mm
1100 mm
230 kg
13870S207B
1150 mm
1150 mm
220 kg
13870S217B
1200 mm
1200 mm
210 kg
More than a product
Our approach complements our products. Partner with us, and you'll find a reliable teamplayer who works alongside you, thinking with you every step of the way!
fixations
Threaded holes
Threaded holes provide an integrated fastening solution, allowing the telescopic slide to be securely mounted using screws. This ensures precise alignment and a firm attachment to the surrounding construction or mounting surface.
