TR-7118 TITAN F

Units
metric

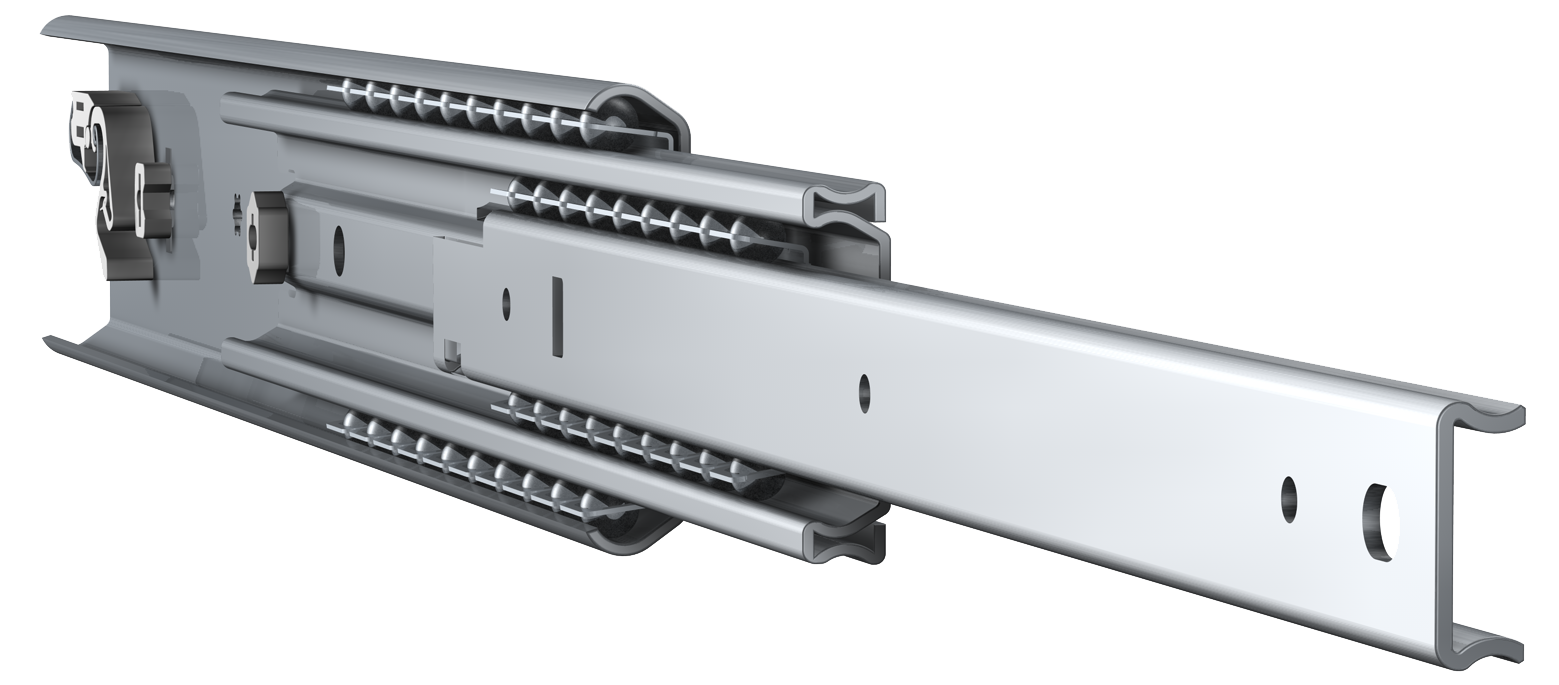

Heavy duty full extension telescopic slide with a load capacity up to 230 kg/507.1 lbs. combined with a travel of 100%. This type of slide with pull in with fail safe feature is perfectly suitable for heavy loaded storage systems.

Specifications

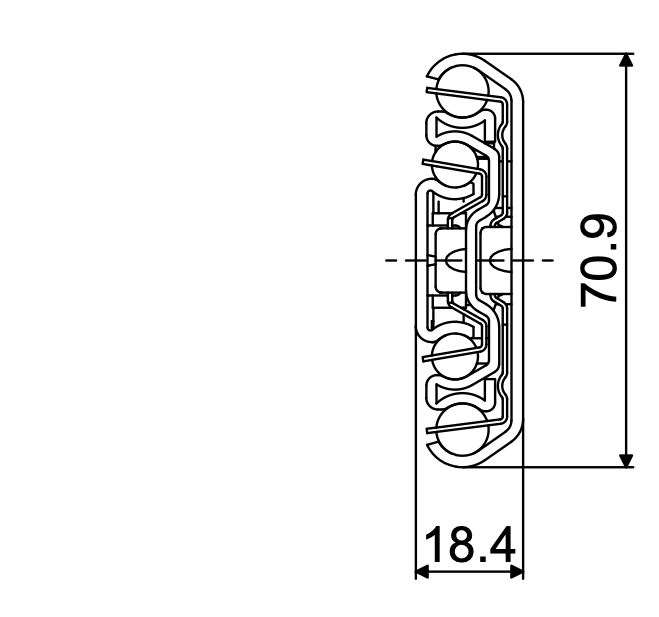

Telescopic slide - Cross section - TR - 7118 TITAN F
Load capacity
170 - 230 kg
Height
71 mm
Width
18 mm

Fixation (cabinet side)
Metal: M5 / DIN 965 / ISO 7046M5 / DIN 7500
Wood: 5.0 / DIN 7997
Fixation (drawer side)
Metal: M4 / DIN 965 / ISO 7046M4 / DIN 7500
Wood: 4.0 / 4.5 / DIN 7997

Technical information

Article number
Length
Travel
Load capacity
Downloads
101S64F
450 mm
450 mm
190 kg
101S65F
500 mm
500 mm
212 kg
101S66F
550 mm
550 mm
230 kg
101S67F
600 mm
600 mm
230 kg
101S68F
700 mm
700 mm
228 kg
101S69F
800 mm
800 mm
219 kg

More than a product

Our approach complements our products. Partner with us, and you'll find a reliable teamplayer who works alongside you, thinking with you every step of the way!

Co-creation
Quality
Sustainability
Factory of the Future

features

Pull-in

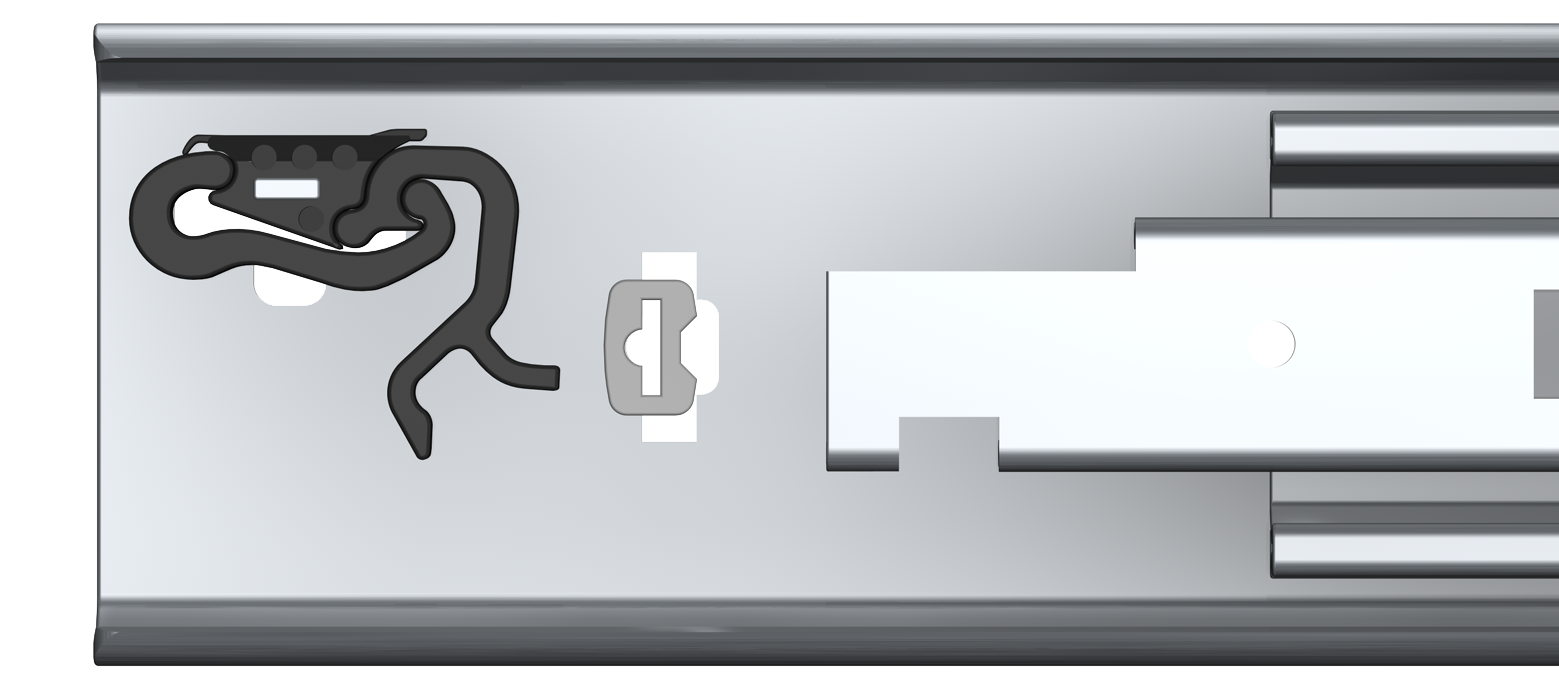

A pull-in function of a telescopic slide automatically pulls the drawer fully closed once it is near the closed position. This feature not only enhances the drawer's appearance by keeping it neatly closed but also helps protect the contents inside from dust and damage.

Pull-in
fixations

Countersunk holes

Countersunk holes are specialized holes that allow fasteners, like screws or bolts, to remain flat with or below the surface of a the base material of the slide. Countersunk holes are used to prevent contact between fasteners and moving parts within our slides

Countersunk holes
