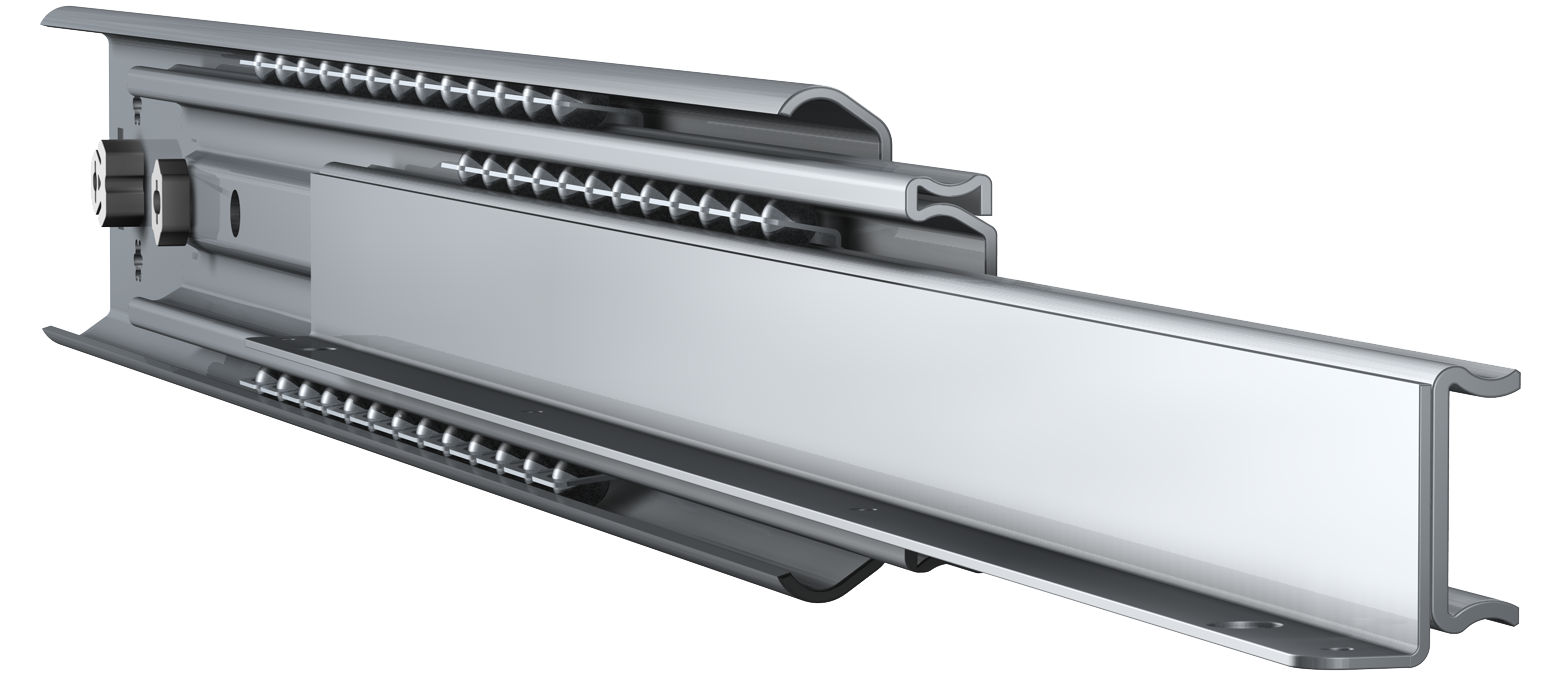

TR-7120 TITAN B
Heavy duty slide with a load capacity up to 189 kg/416.7 lbs. combined with a travel of 110%. This type of telescopic slide is applicable in heavy loaded storage systems for kitchens and shopfitting applications.

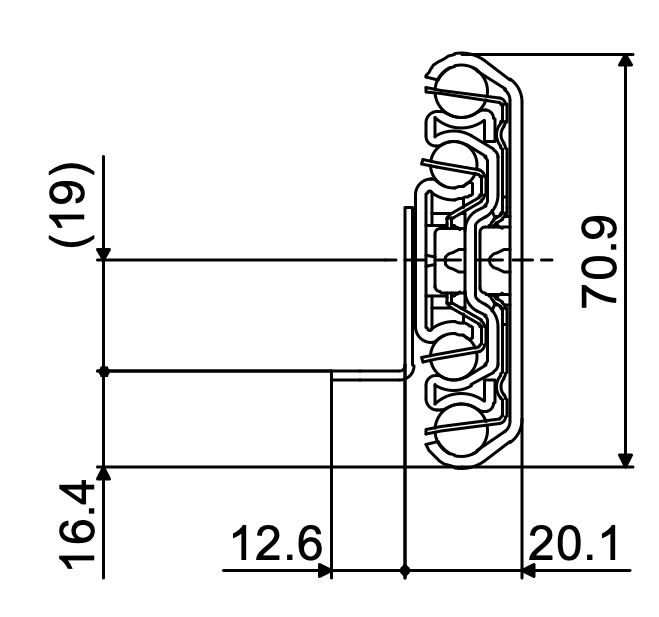

Specifications
157 - 189 kg
71 mm
20 mm
Technical information
More than a product
Our approach complements our products. Partner with us, and you'll find a reliable teamplayer who works alongside you, thinking with you every step of the way!
Bumper with hold closed
A bumper with hold-closed function of a telescopic slide combines the benefits of dampening with the added feature of keeping the drawer closed. This system has a bumper that not only absorbs impact and reduces noise when the drawer closes but also includes a mechanism that keeps the drawer shut when it’s in the closed position. This feature is ideal for maintaining a tidy and stable appearance while providing added security and durability.
Countersunk holes
Countersunk holes are specialized holes that allow fasteners, like screws or bolts, to remain flat with or below the surface of a the base material of the slide. Countersunk holes are used to prevent contact between fasteners and moving parts within our slides

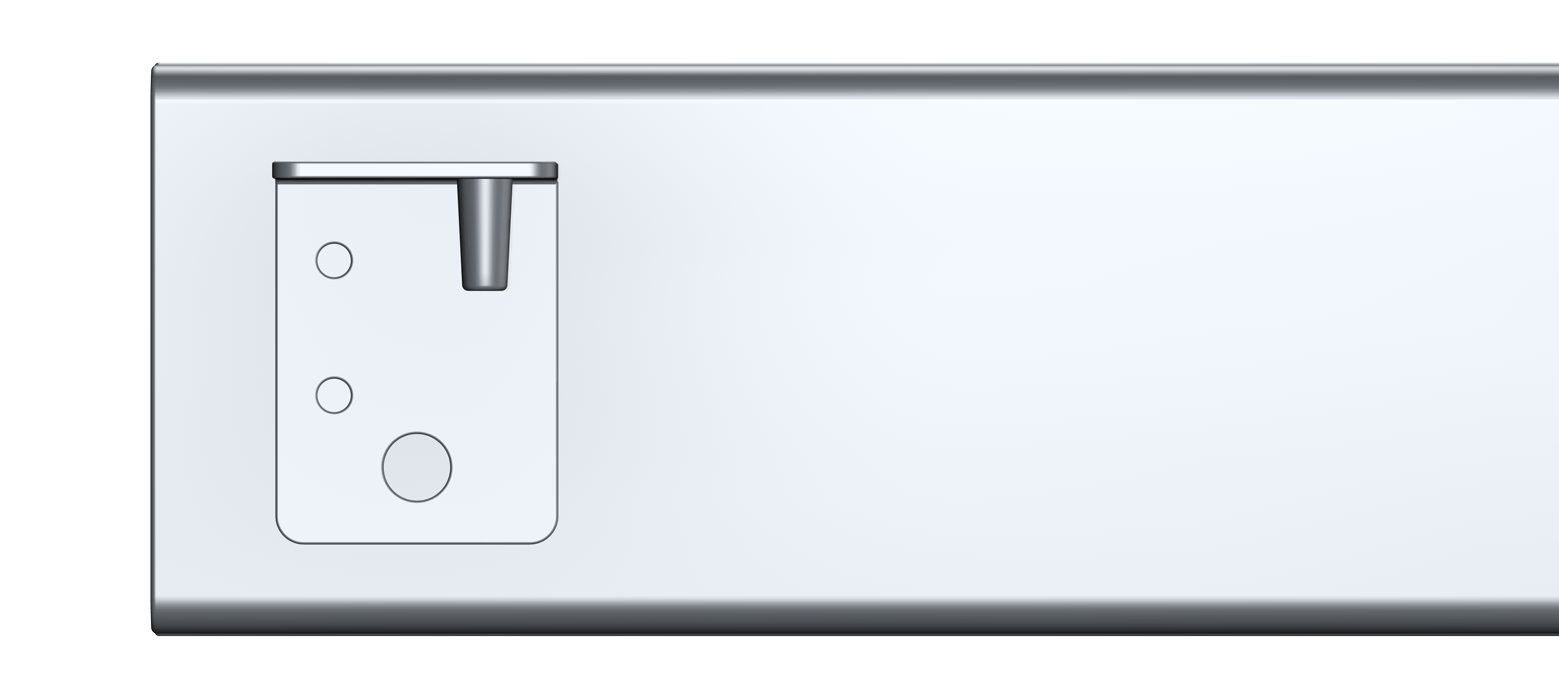

Drawer carrier
A drawer carrier on a telescopic slide is an angle bar, mounted on a slide, to mount and support a drawer. This component is directly attached to the drawer and moves along with it.
