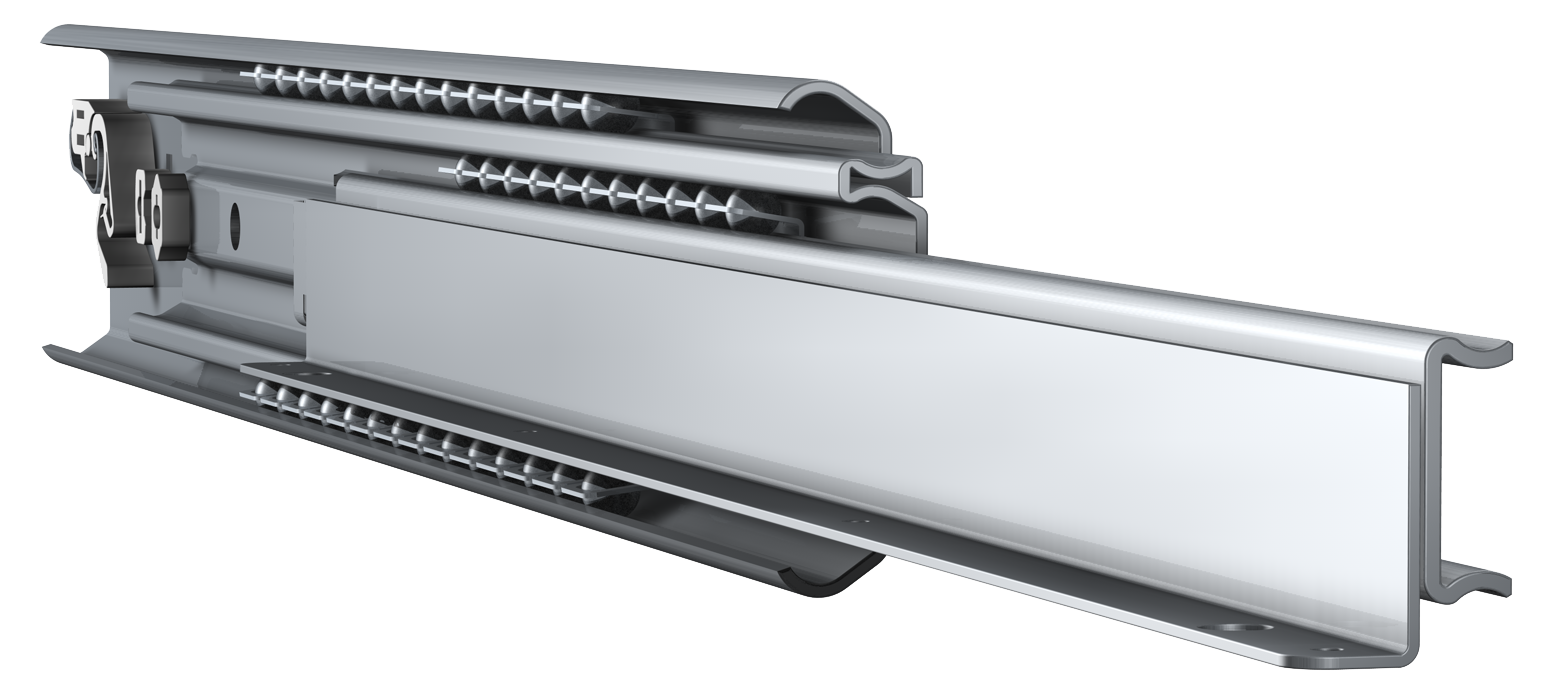

TR-7120 TITAN E
Full extension telescopic ball bearing drawer runner for heavy duty applications with a drawer carrier and pull in with fail safe. This slide supports loads up to 230 kg/507.1 lbs. and can be used for office furniture, industry, professional storage and automotive applications.

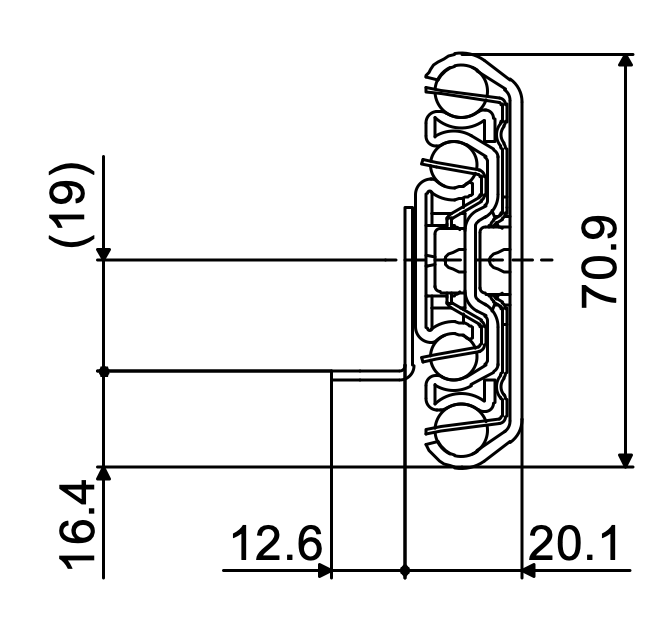

Specifications
170 - 230 kg
71 mm
18 mm
Technical information
More than a product
Our approach complements our products. Partner with us, and you'll find a reliable teamplayer who works alongside you, thinking with you every step of the way!
Pull-in
A pull-in function of a telescopic slide automatically pulls the drawer fully closed once it is near the closed position. This feature not only enhances the drawer's appearance by keeping it neatly closed but also helps protect the contents inside from dust and damage.
Countersunk holes
Countersunk holes are specialized holes that allow fasteners, like screws or bolts, to remain flat with or below the surface of a the base material of the slide. Countersunk holes are used to prevent contact between fasteners and moving parts within our slides
Drawer carrier
A drawer carrier on a telescopic slide is an angle bar, mounted on a slide, to mount and support a drawer. This component is directly attached to the drawer and moves along with it.
