TR-2710 EMS 1
Units
metric
Single extension telescopic ball bearing slide which supports loads up to 28 kg/61.7 lbs. Perfectly suitable for applications such as kitchen furniture, shopfitting and other light-weight applications.
Specifications
Load capacity
22 - 28 kg
22 - 28 kg

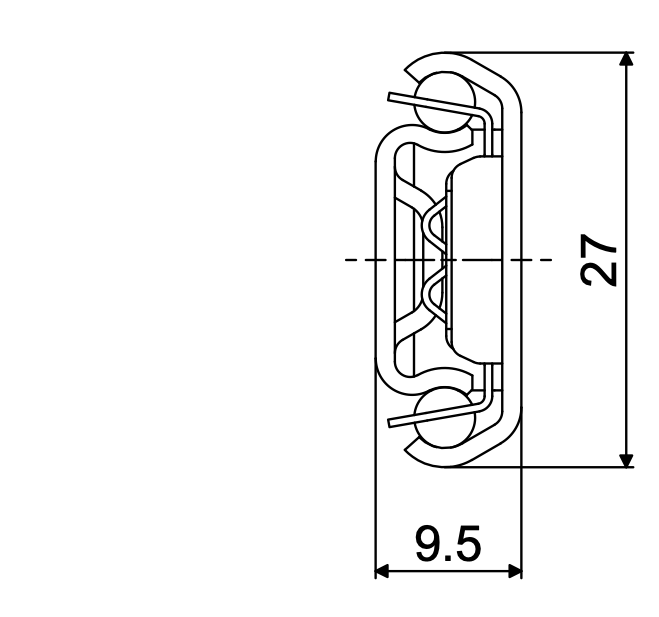

Height
27 mm
27 mm
Width
10 mm
10 mm
Fixation (cabinet side)
Metal: M4 / ISO 7380
Wood: 4.0 / DIN 7997
Fixation (drawer side)
Metal: M4 / DIN 965
Wood: 3.5 / DIN 7997
Technical information
Article number
Length
Travel
Load capacity
Downloads
109042F
300 mm
210 mm
22 kg
STEP filesDrawing (Metric)Drawing (Imperial)
109043F
350 mm
240 mm
26 kg
109044F
400 mm
290 mm
26 kg
109046F
500 mm
370 mm
28 kg
More than a product
Our approach complements our products. Partner with us, and you'll find a reliable teamplayer who works alongside you, thinking with you every step of the way!
fixations

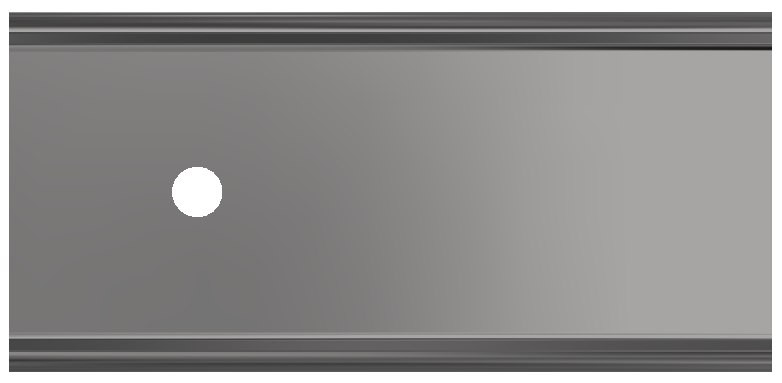

Hole
Holes in a telescopic slide are used to secure the slide to both the mounting surface or the cabinet and the drawer. They provide attachment points for screws or bolts, ensuring that the slide remains firmly in place during operation. Additionally, some holes allow for adjustments in positioning, facilitating precise alignment and smooth movement.
