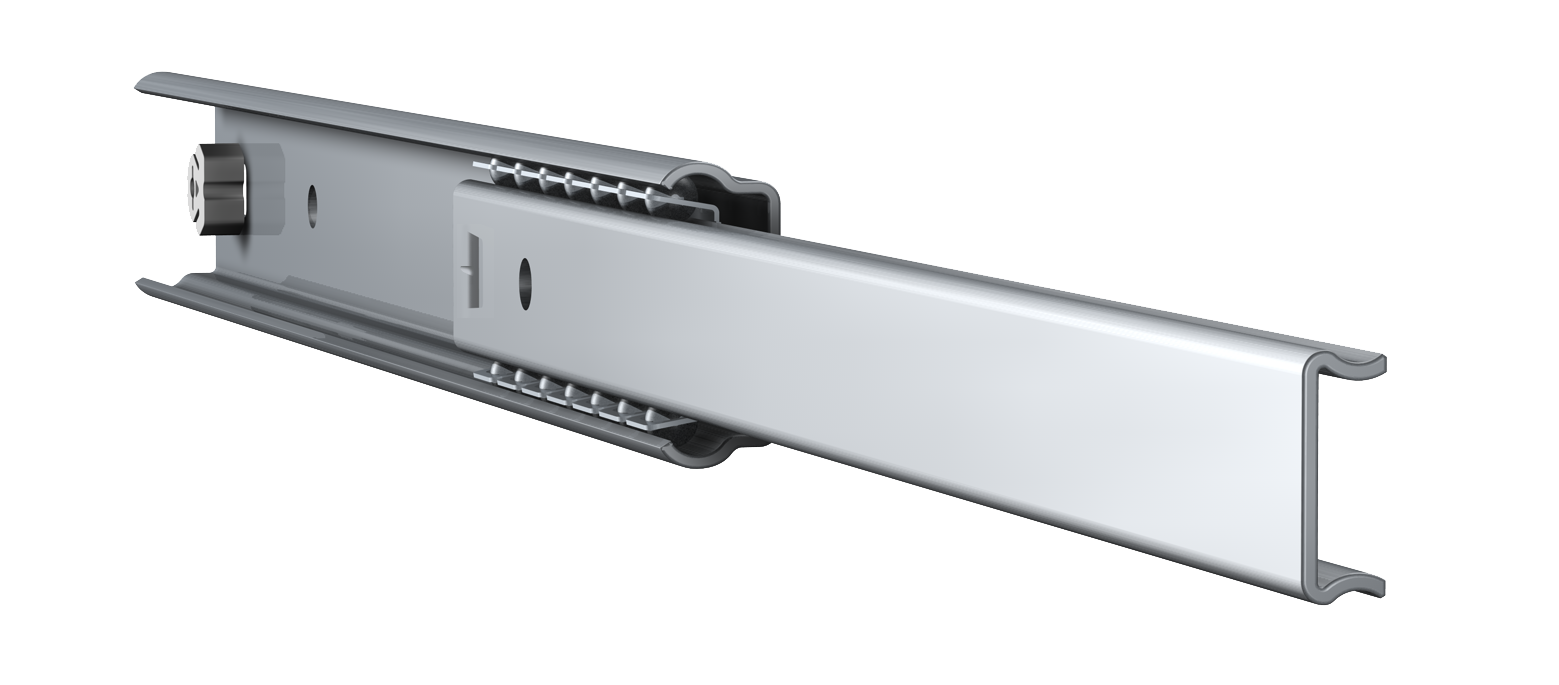

TR-4522 ADO
Single extension 2-beam cold rolled telescopic drawer slide which has a travel of maximum 75%. This telescopic slide with bumper supports loads up to 91 kg/200.6 lbs. and is perfect for light to medium duty applications.

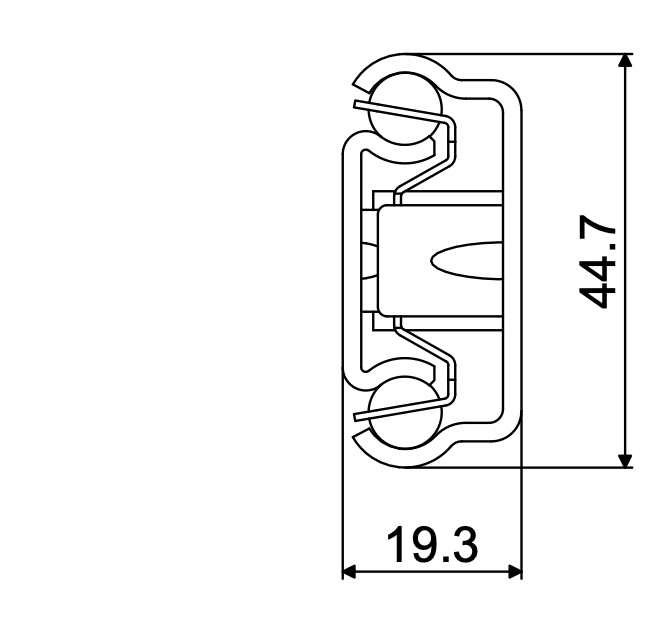

Specifications
91 - 91 kg
45 mm
19 mm
Technical information
More than a product
Our approach complements our products. Partner with us, and you'll find a reliable teamplayer who works alongside you, thinking with you every step of the way!

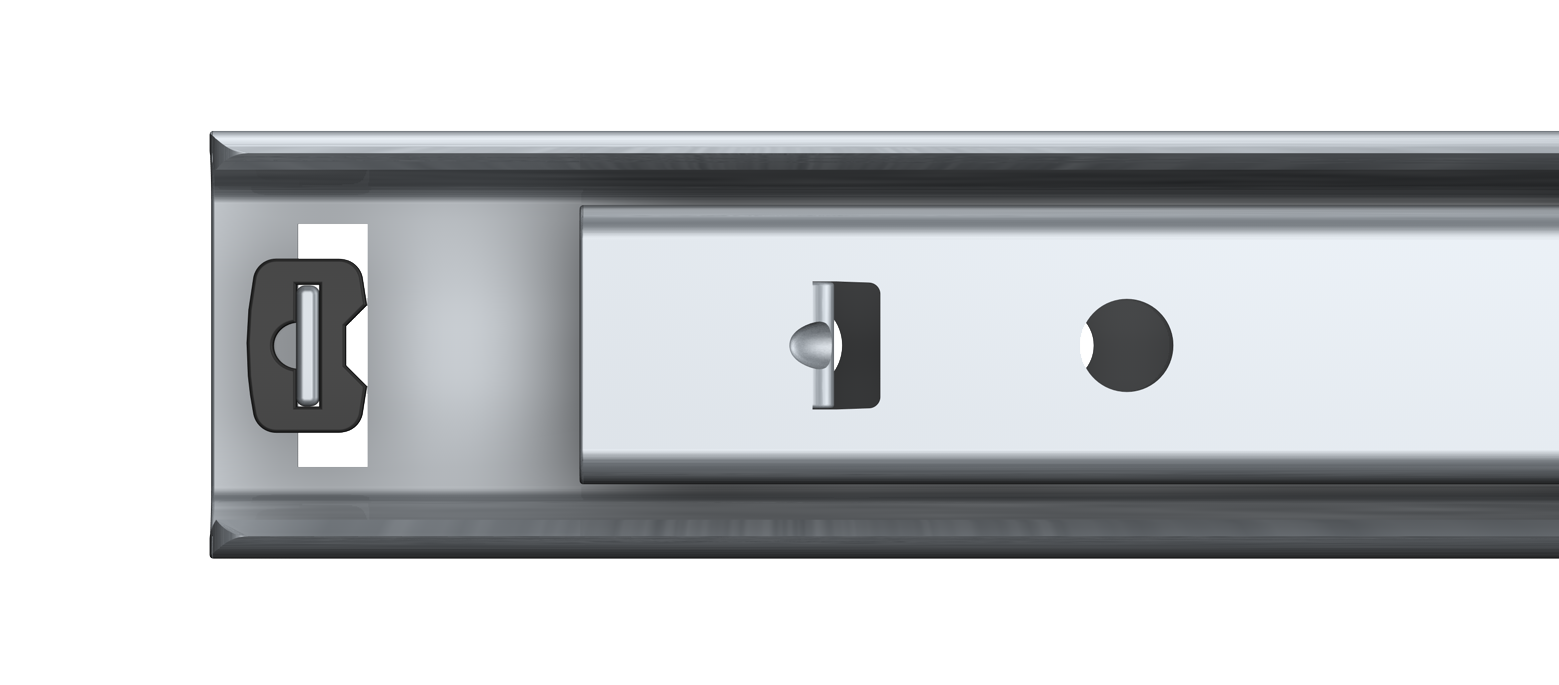

Bumper without hold closed
A bumper without hold-closed function of a telescopic slide is designed to prevent the drawer from slamming shut and to absorb impacts as it closes. This feature typically uses a bumper placed at the end of the movement of the drawer, which dampens the closing motion, reducing noise. However, unlike systems with a hold-closed function, this bumper does not keep the drawer shut in the closed position. It simply provides closing experience, that enhances durability and comfort while ensuring the drawer closes quietly.

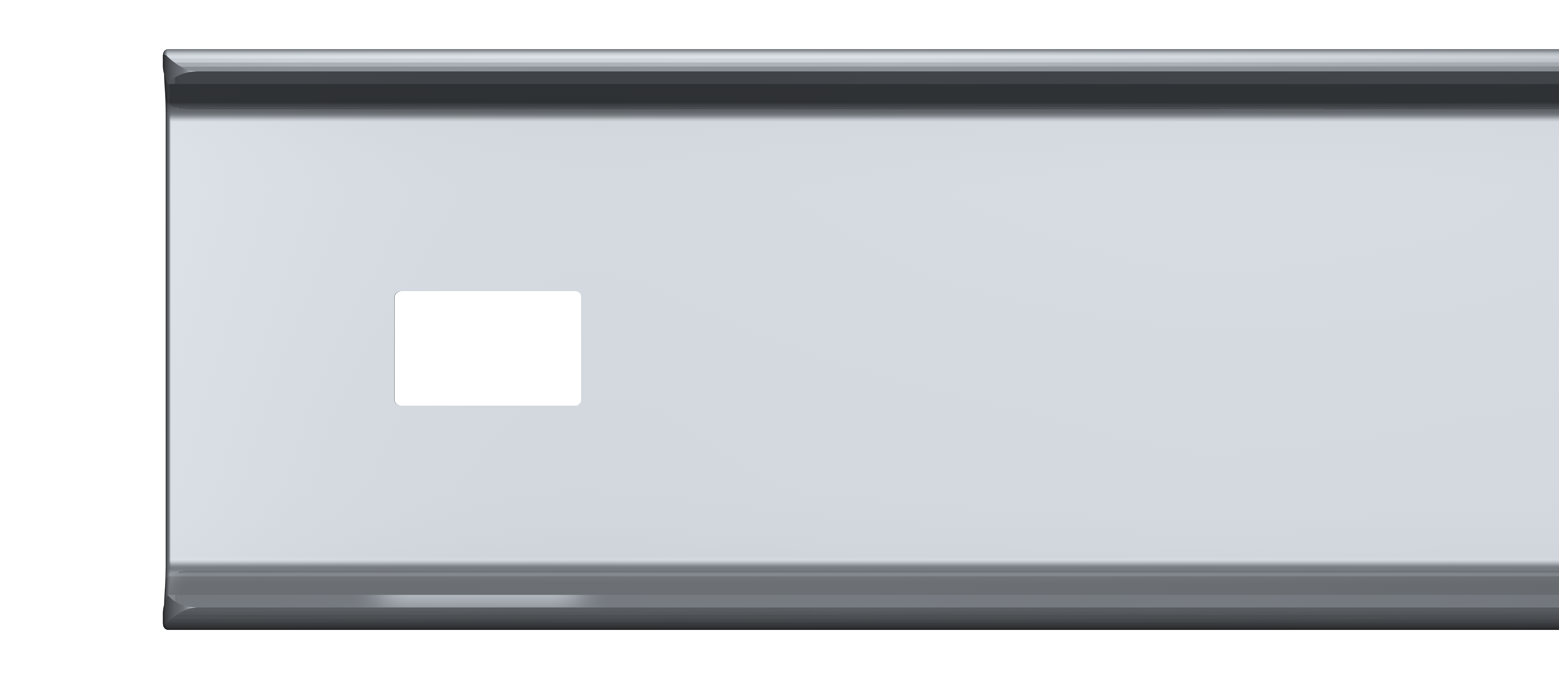

Hole
Holes in a telescopic slide are used to secure the slide to both the mounting surface or the cabinet and the drawer. They provide attachment points for screws or bolts, ensuring that the slide remains firmly in place during operation. Additionally, some holes allow for adjustments in positioning, facilitating precise alignment and smooth movement.
