TR-5618 ULF HD BILEX
Units
metric

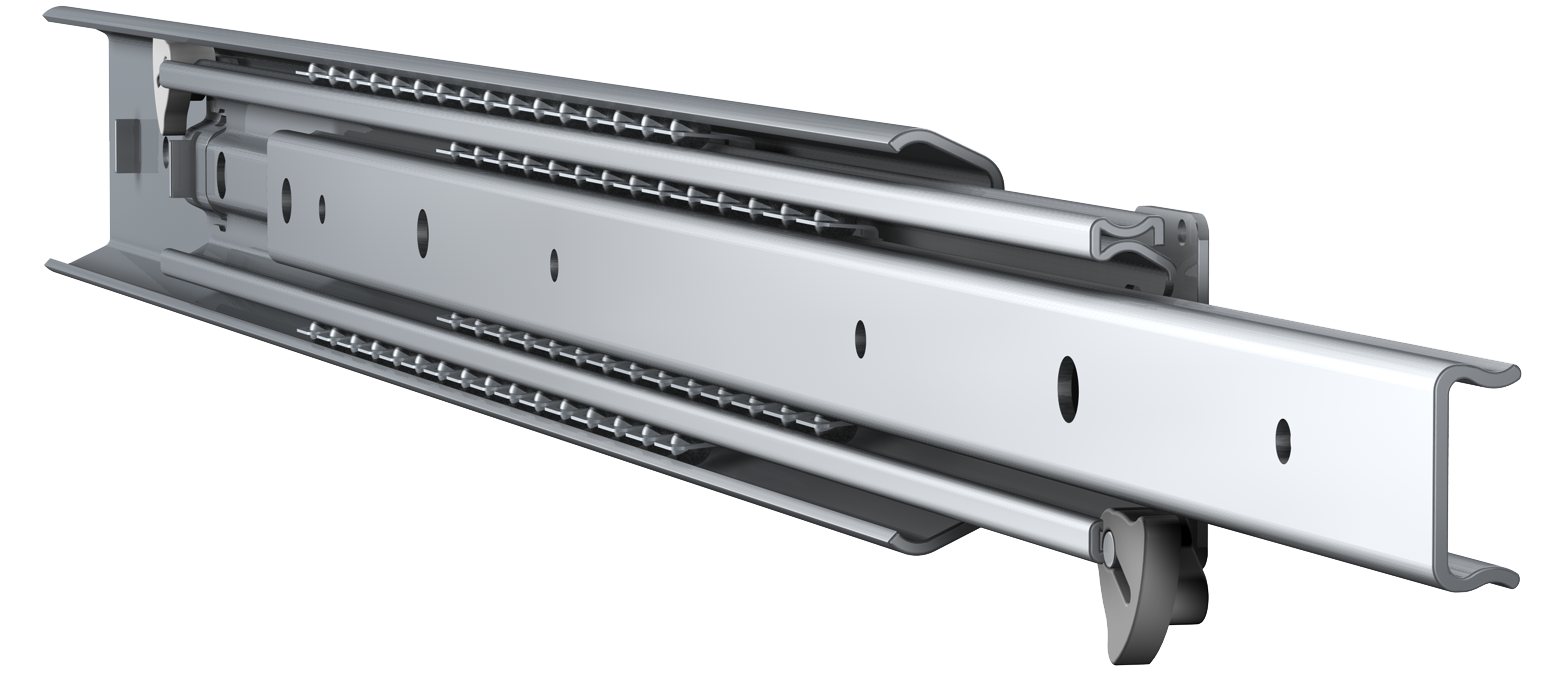

Two-way full extension industrial slide for heavy duty applications with 100% extension on two sides which enables the complete drawer to be accessed both sides of a partition. Manufactured from formed rolled steel with a load capacity up to 138 kg/304.2 lbs.
Specifications
Load capacity
114 - 138 kg
114 - 138 kg

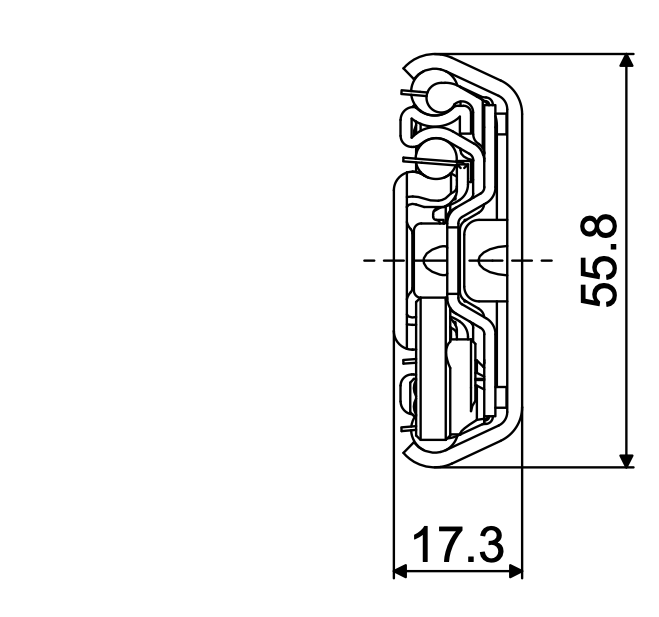

Height
56 mm
56 mm
Width
17 mm
17 mm
Fixation (cabinet side)
Metal: M5 / DIN 965 / ISO 7046M5 / DIN 7500
Wood: 5.0 / DIN 7997
Fixation (drawer side)
Metal: M4 / DIN 965 / ISO 7046M4 / DIN 7500
Wood: 4.5 / DIN 7997
Technical information
Article number
Length
Travel
Load capacity
Downloads
112511F
500 mm
503 mm
114 kg
112510F
600 mm
607 mm
119 kg
112509F
700 mm
711 mm
131 kg
112512F
800 mm
815 mm
138 kg
More than a product
Our approach complements our products. Partner with us, and you'll find a reliable teamplayer who works alongside you, thinking with you every step of the way!
fixations
Countersunk holes
Countersunk holes are specialized holes that allow fasteners, like screws or bolts, to remain flat with or below the surface of a the base material of the slide. Countersunk holes are used to prevent contact between fasteners and moving parts within our slides
