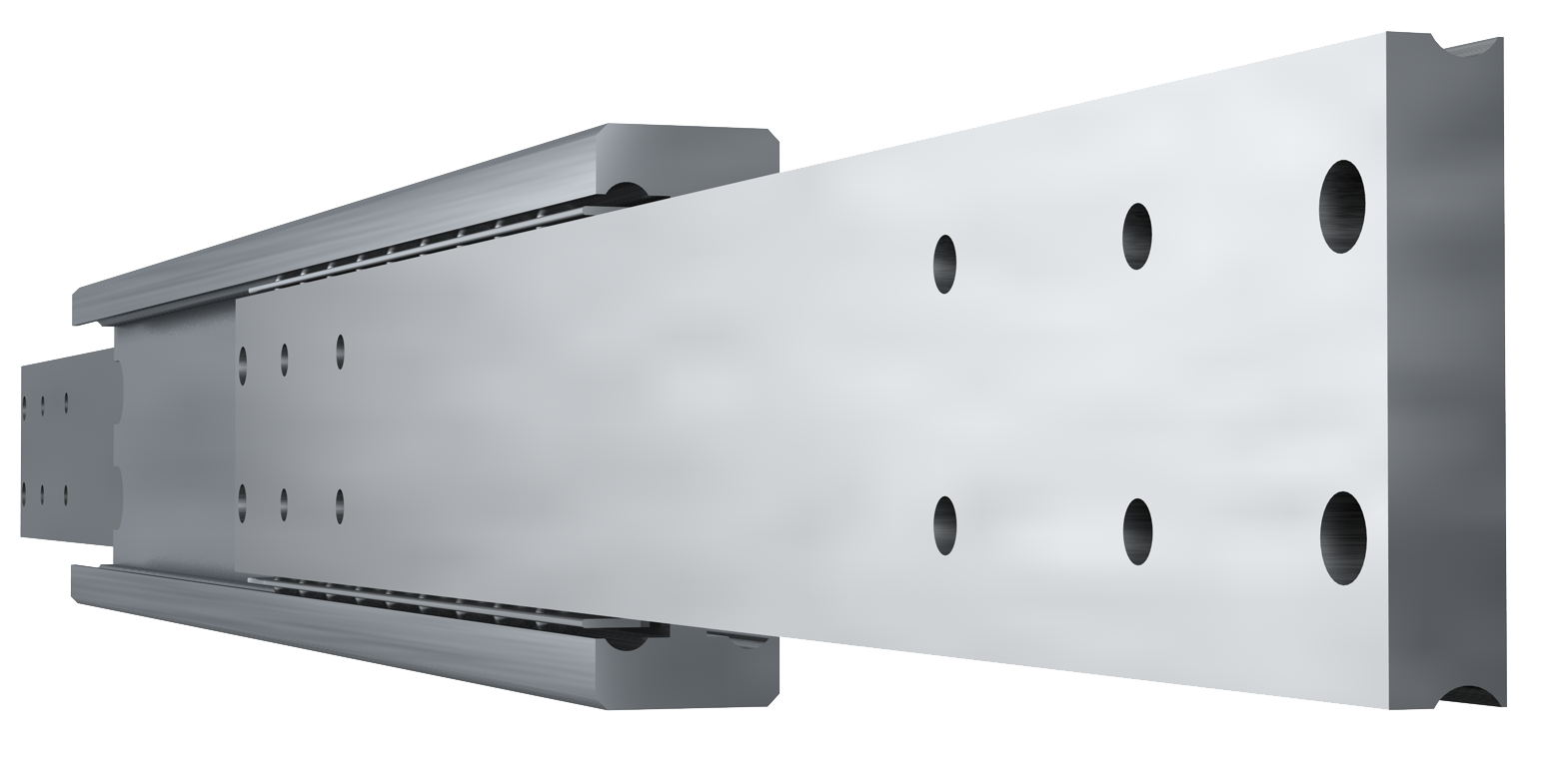

Solid beam slide which is made for heavy duty application. This double T-design telescopic slide is manufactured from cold drawn steel and has a load capacity up to 1050 kg/2314.9 lbs.
Specifications
Load capacity
650 - 1050 kg
650 - 1050 kg

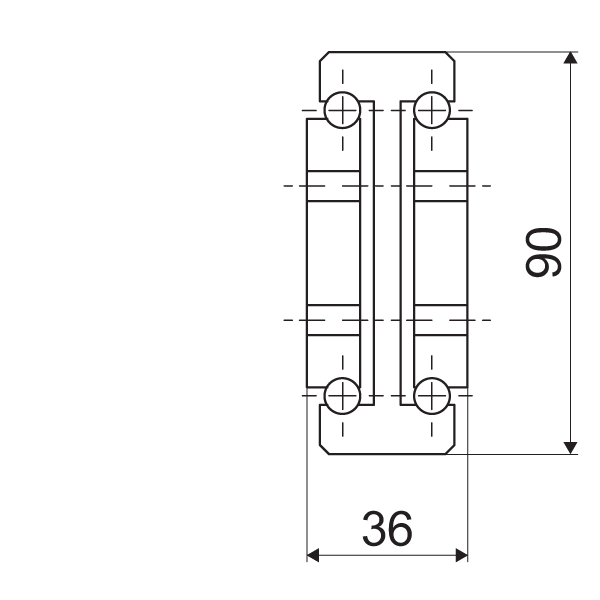

Height
90 mm
90 mm
Width
36 mm
36 mm
Fixation (cabinet side)
Metal: M8, M10
Fixation (drawer side)
Metal: M8, M10
Technical information
Article number
Length
Travel
Load capacity
Downloads
13890S01
200 mm
200 mm
650 kg
13890S02
250 mm
250 mm
720 kg
13890S03
300 mm
300 mm
780 kg
13890S04
350 mm
350 mm
830 kg
13890S05
400 mm
400 mm
860 kg
13890S06
450 mm
450 mm
890 kg
13890S07
500 mm
500 mm
940 kg
13890S08
550 mm
550 mm
960 kg
13890S09
600 mm
600 mm
980 kg
13890S10
650 mm
650 mm
1000 kg
13890S11
700 mm
700 mm
1030 kg
13890S12
750 mm
750 mm
1040 kg
13890S13
800 mm
800 mm
1050 kg
13890S14
850 mm
850 mm
1045 kg
13890S15
900 mm
900 mm
1030 kg
13890S16
950 mm
950 mm
1015 kg
13890S17
1000 mm
1000 mm
995 kg
13890S18
1050 mm
1050 mm
980 kg
13890S19
1100 mm
1100 mm
950 kg
13890S20
1150 mm
1150 mm
920 kg
13890S21
1200 mm
1200 mm
900 kg
More than a product
Our approach complements our products. Partner with us, and you'll find a reliable teamplayer who works alongside you, thinking with you every step of the way!
fixations
Threaded holes
Threaded holes provide an integrated fastening solution, allowing the telescopic slide to be securely mounted using screws. This ensures precise alignment and a firm attachment to the surrounding construction or mounting surface.
